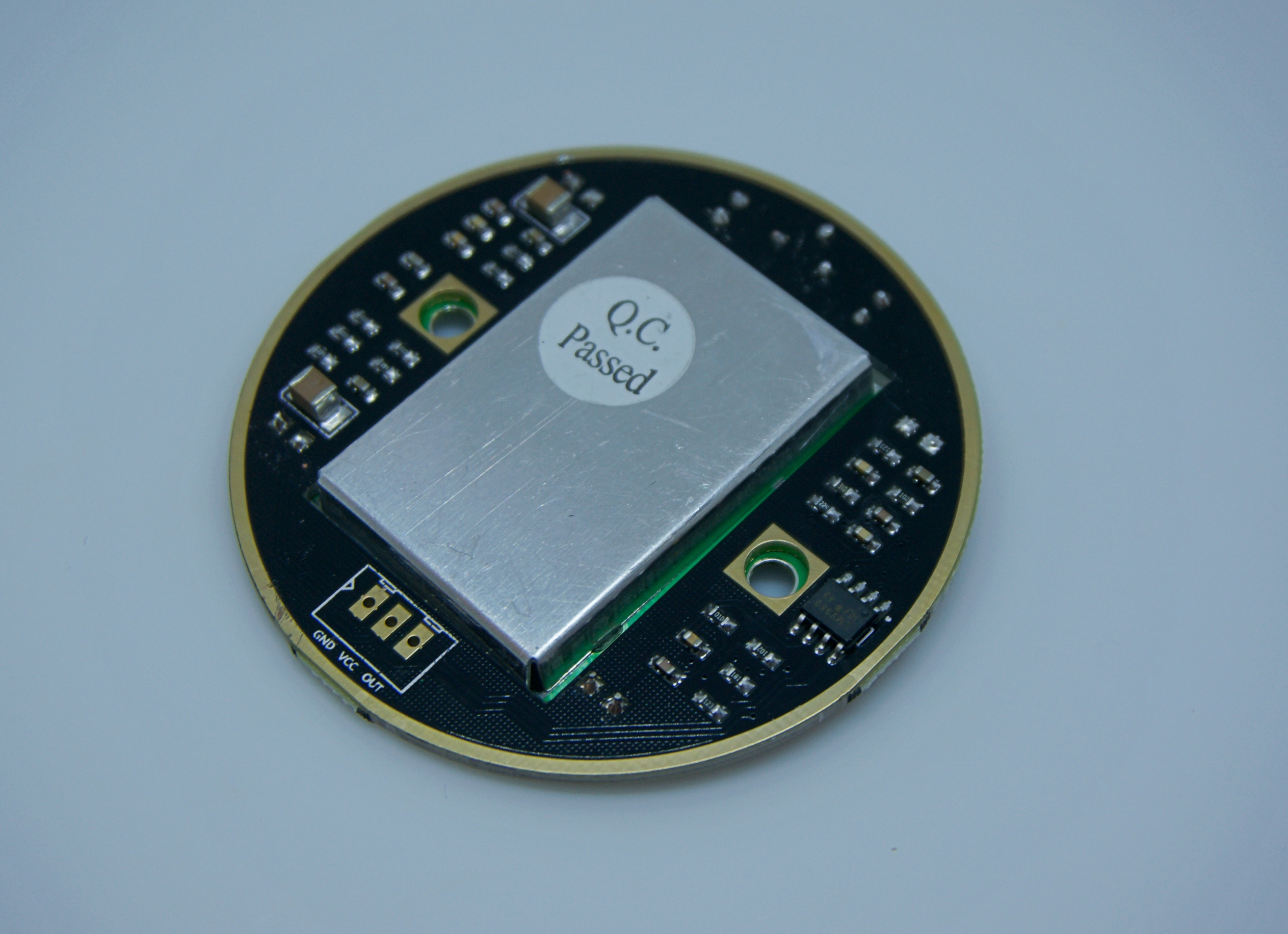

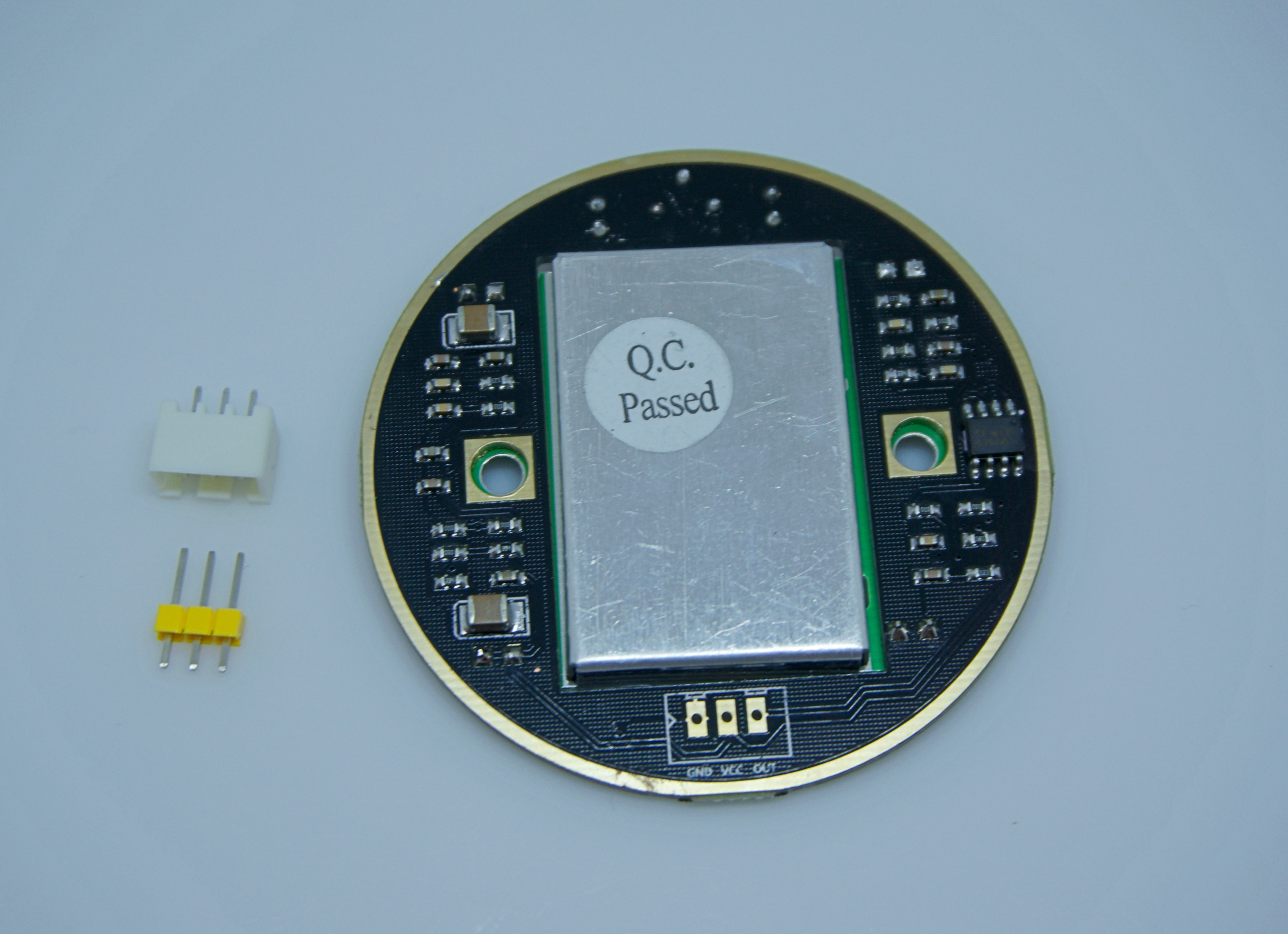

HB100X Microwave Sensor 2-16M Doppler Radar Human Body sensor

     The microwave motion sensor is a microwave moving object detector designed using Doppler radar principle. Unlike ordinary infrared detectors, microwave sensors detect the motion of an object by detecting microwaves reflected from the object. The detection object will not be limited to the human body, and there are many other things. The microwave sensor is not affected by the ambient temperature, has a long detection range and high sensitivity, and is widely used in industrial, transportation and civil devices such as vehicle speed, automatic doors, sensor lights, and parking sensors.

     Because of the universality of microwave sensor detection objects, in actual life applications, it will be matched with another sensor for targeted detection. Such as microwave sensor + infrared pyroelectric sensor, can effectively determine whether someone passed, will not be the sun, was disturbed by the color of clothing, will not respond to other objects.

Specifications

This detection method has the following advantages over other detection methods:

1. non-contact detection
2. not affected by temperature, humidity, noise, airflow, dust, light, etc., suitable for harsh environments
3. anti-radio frequency interference ability
4. the output power is small, do not harm the body structure
5. detection distance
6. Support the detection of non-life objects
7. the direction of the microwave is very good, the speed is equal to the speed of light

Product parameters

1. Working voltage : 5V±0.25V
2. Operating Current (CW): 50mA max., 30mA typical
3. size: R=30.6mm
4. Detection distance: Used with adapter plate or reference circuit below, 2-16m continuously adjustable (minimum 2m, maximum 16m)
5. Helium emission frequency : 10.525 GHz
6. Frequency setting accuracy : 3MHz
7. Output power (minimum): 13dBm EIRP
8. harmonic emission: <-10dBm
9. Average current (5%DC) : 2mA type.
10. Pulse width (Min.): 5uSec
11. Duty cycle (Min.): 1%

Receive parameters:

1. Sensitivity (10dB S/N ratio) 3Hz to 80Hz Bandwidth: -86dBm
2. 10.3Hz to 80Hz Bandwidth Clutter 10uV
3. Antenna gain: 8dBi
4. Vertical 3dB beam width: 36 degrees
5. Water level 3dB Beam width: 72 degrees
