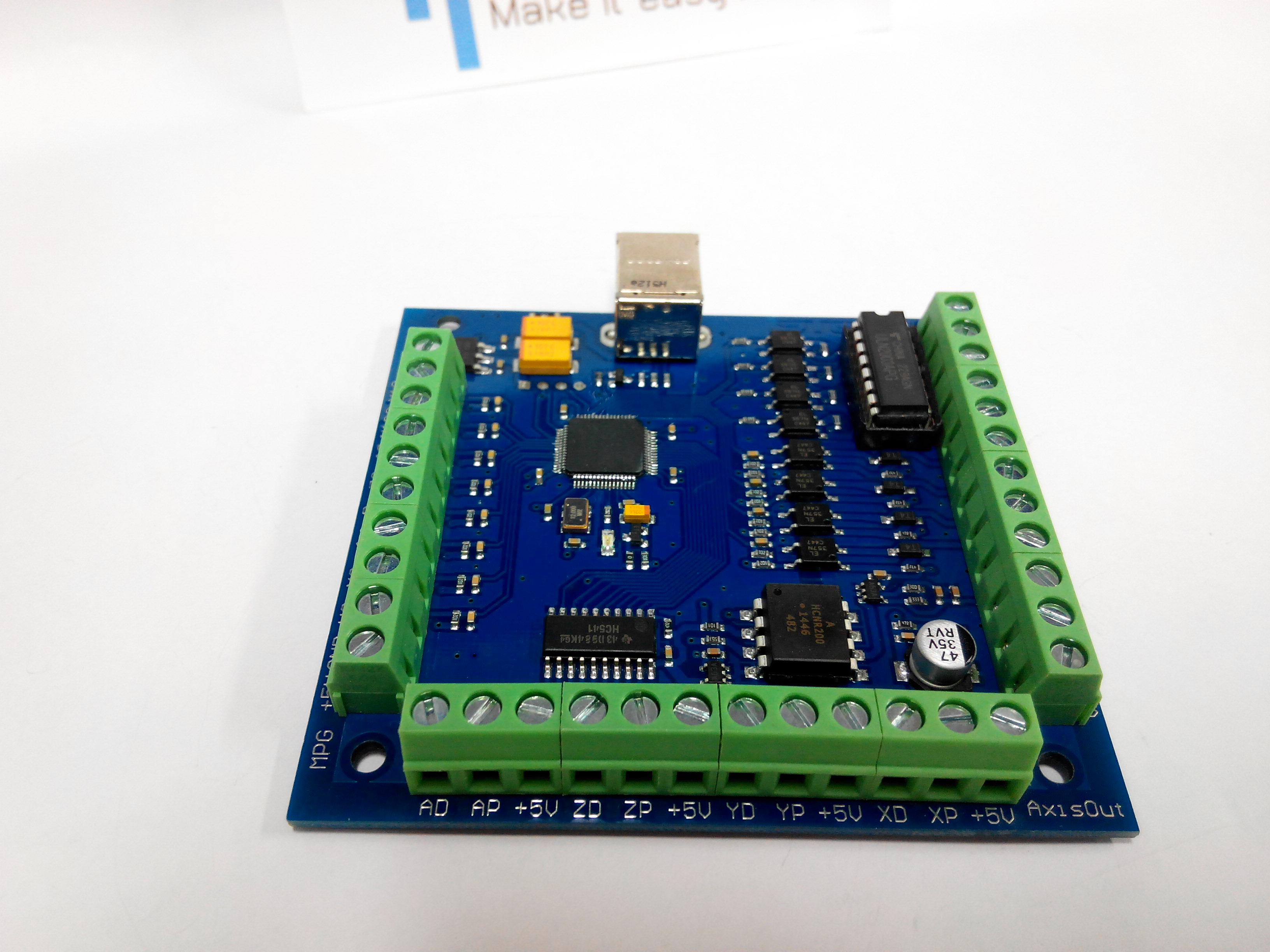

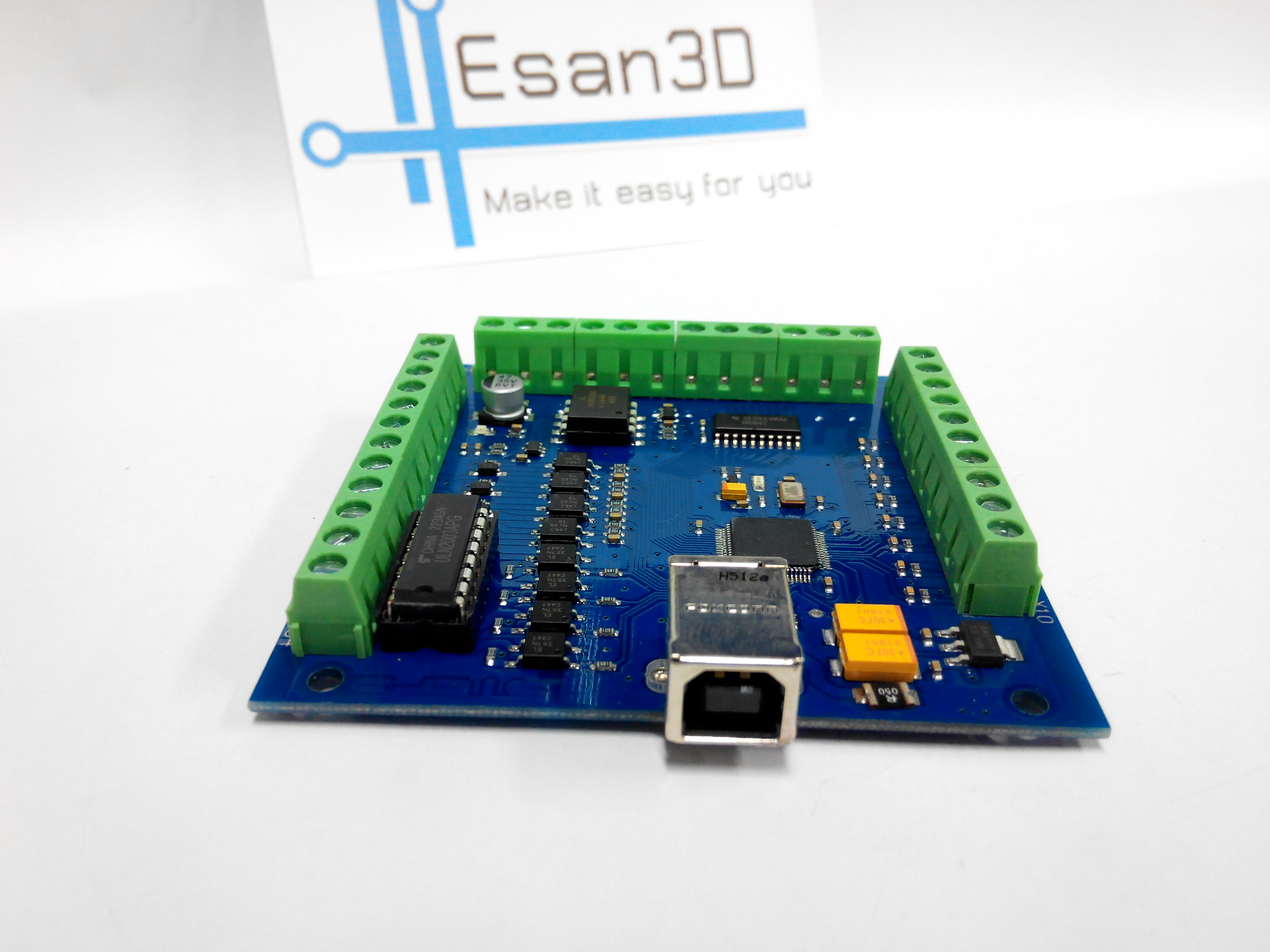

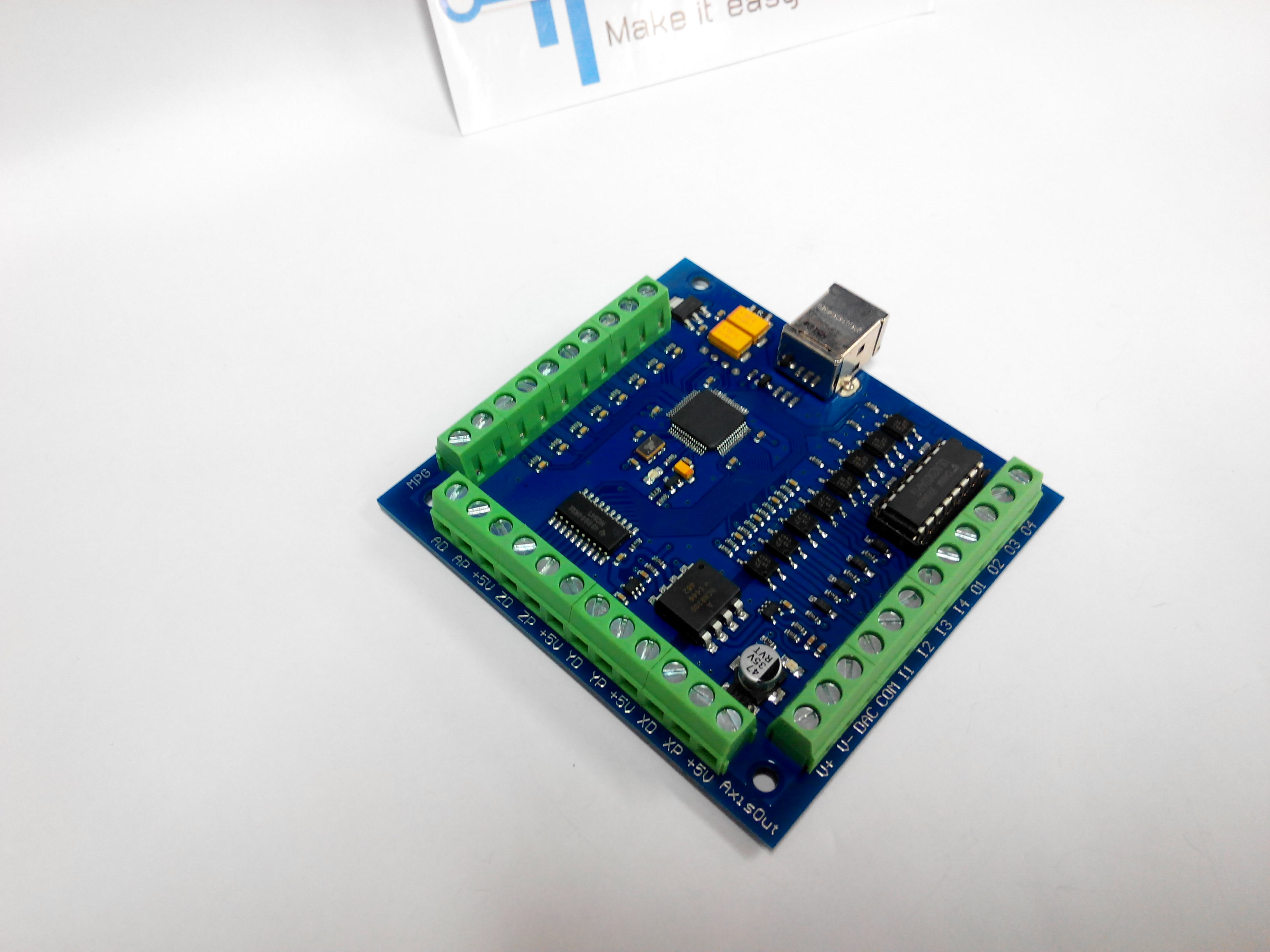

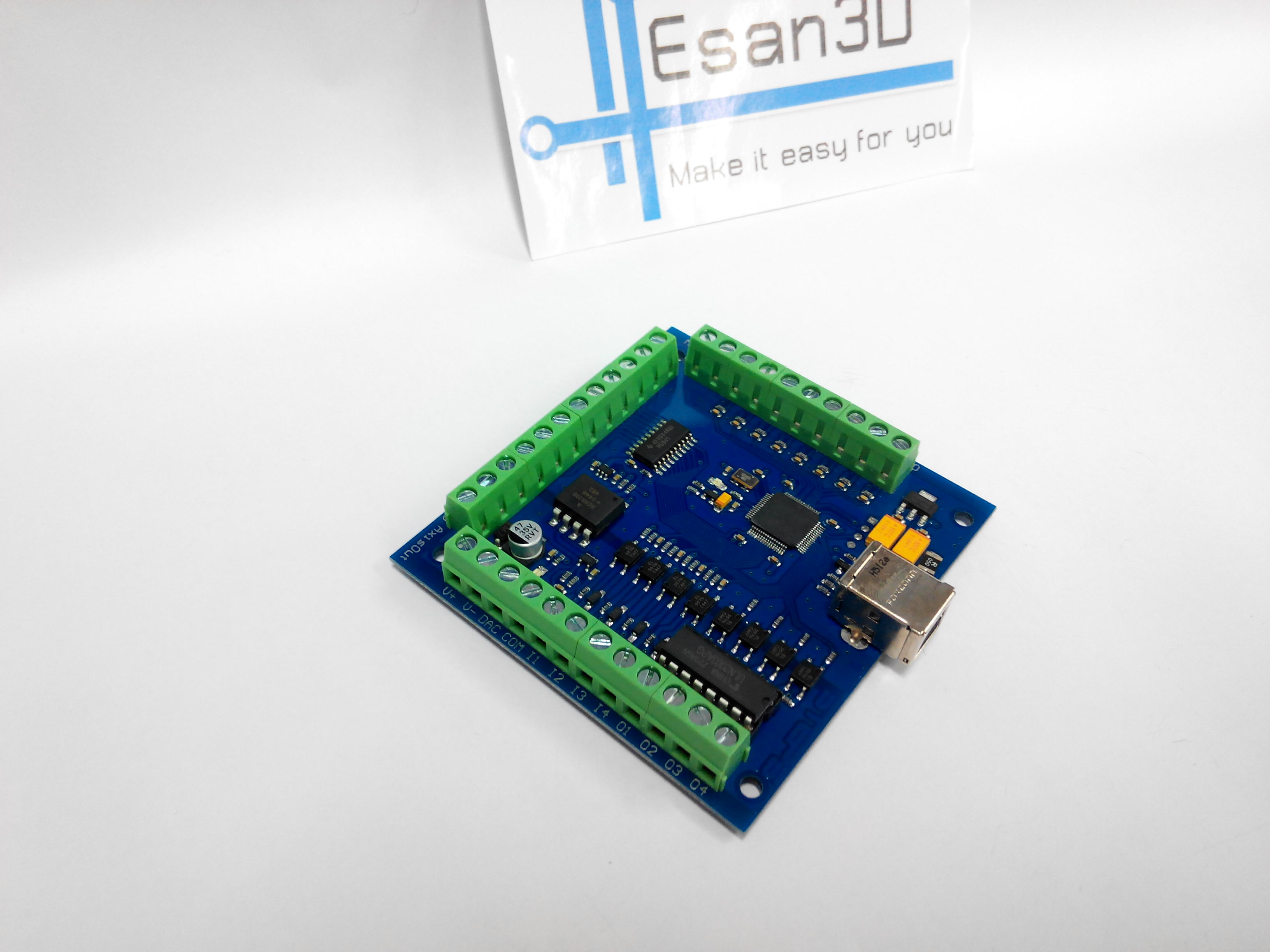

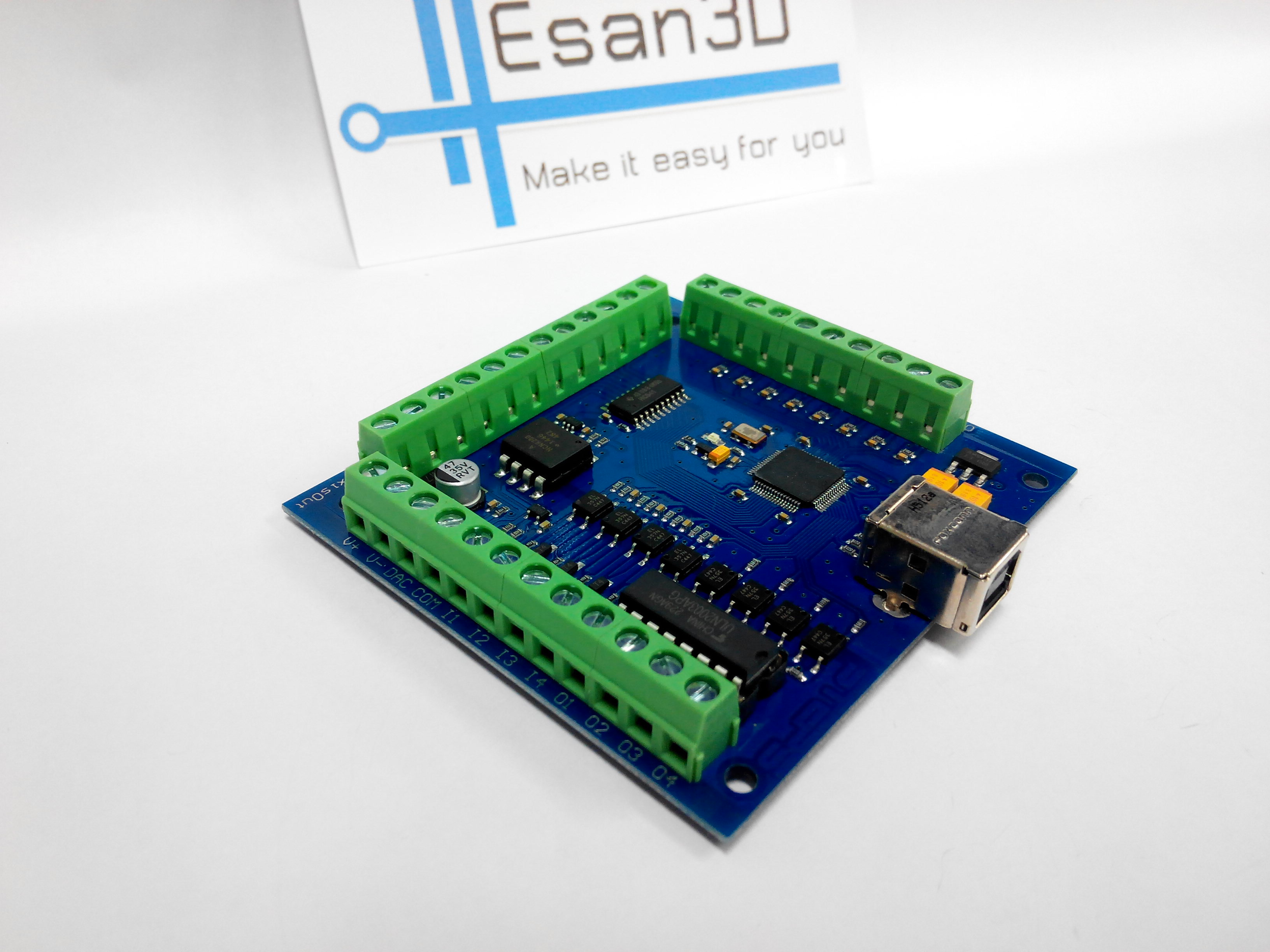

บอร์ด 4 Axis 100KHz USB Mach3 Breakout Board 12-24V

 4 Axis 100KHZ Five Axis Stepper Motor Driver Breakout Board USB MACH3

USB CNC Interface Board for CNC Engraving Machine

Description

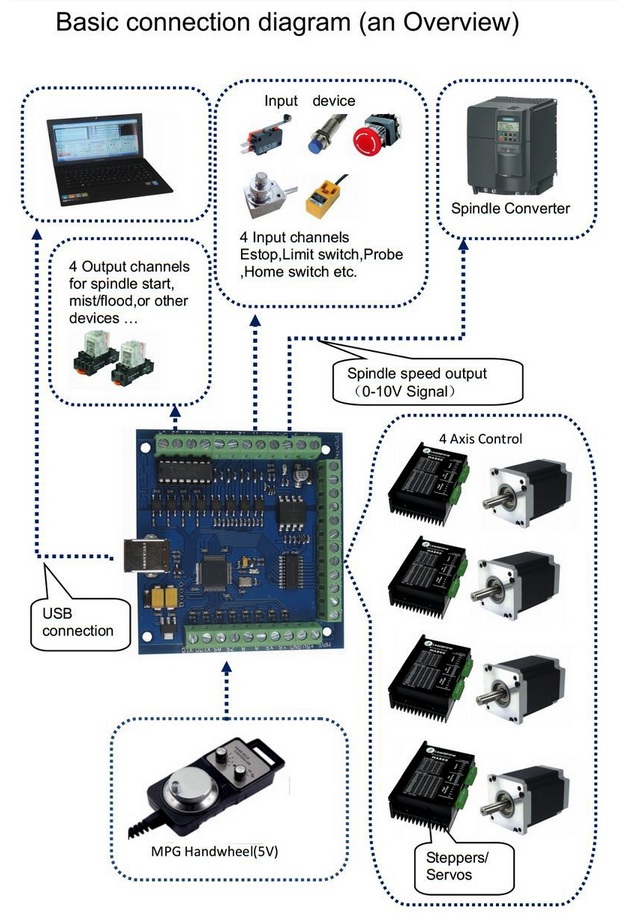

1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives;

 2. Maximum step-pulse frequency is 100KHz,which is suitable for the servo or stepping motor;

 3. Support automatic probe tool

 4. Support Emergency input

 5. Support for limit switch

 6. Support for connecting electronic handwheel

 7. Need use external 24V DC power supply to isolate USB and external port, and to make the system more stable.

 8. Have 0-10V output port, you can use mach3 software to control the spindle motor speed.

 9. 4 general-purpose inputs, you can connect the limit switch, estop switch, probe switch, back to zero and other device

 10. 4 general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps and other device;

 11. 1 status LED, indicate connection status on the board.

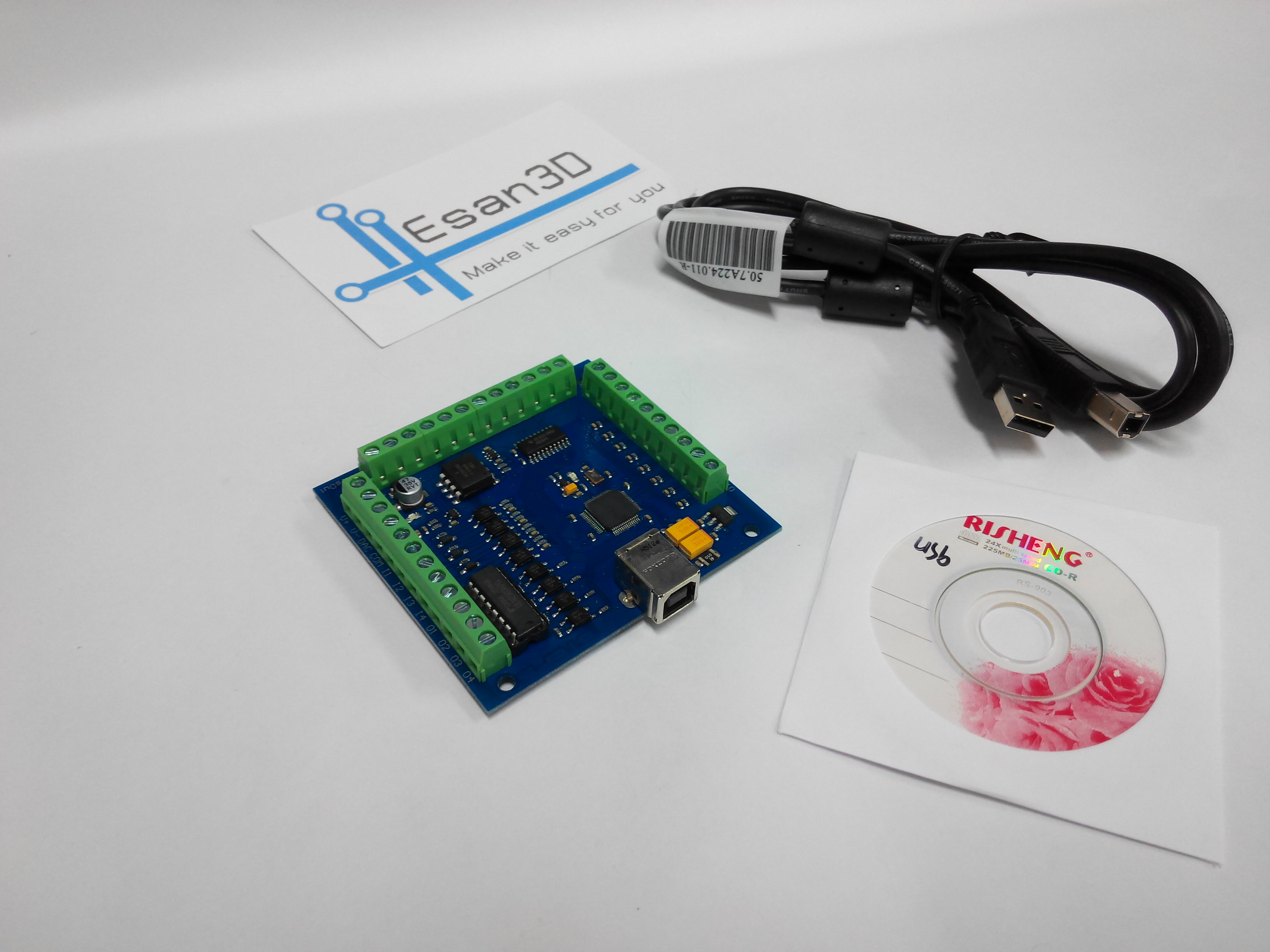

Package included

- 1 x  mach3 4 Axis USB CNC Controller card 100KHz

- 1 x USB cable(With two magnetic shield)

- 1 x CD (include with English user manual and mach3 full version software)
